Suitable for 2 and 4 strokes...

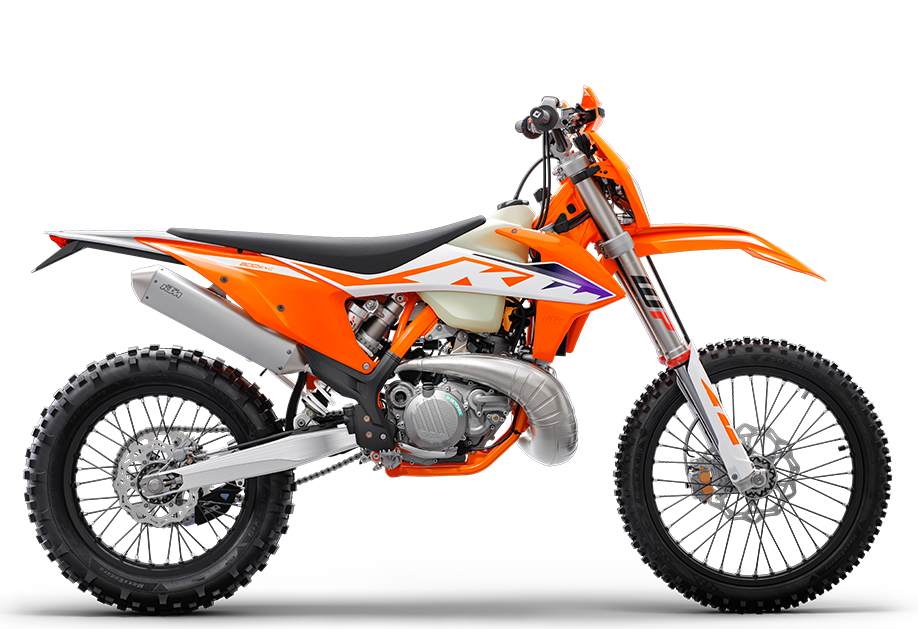

KTM

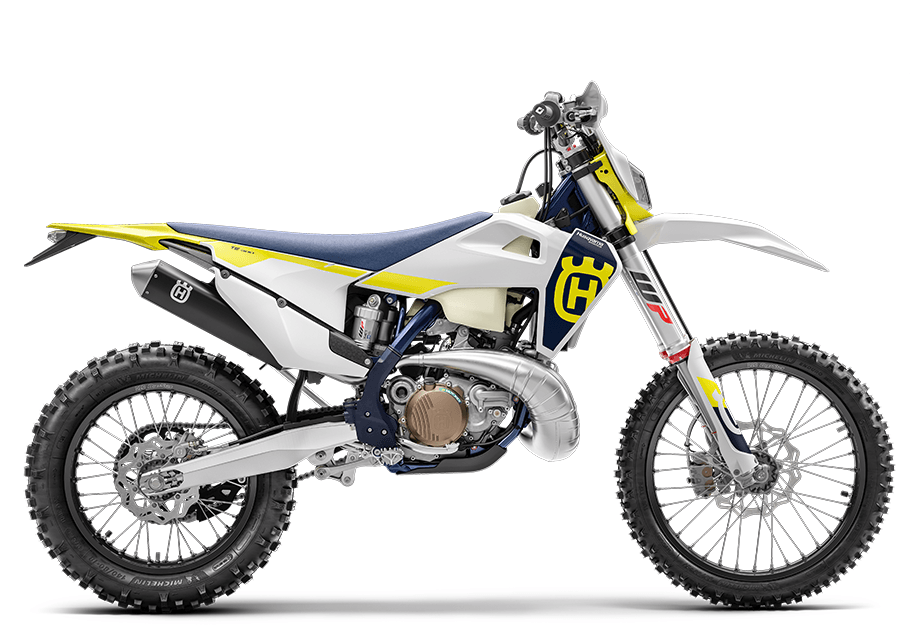

Husqvarna

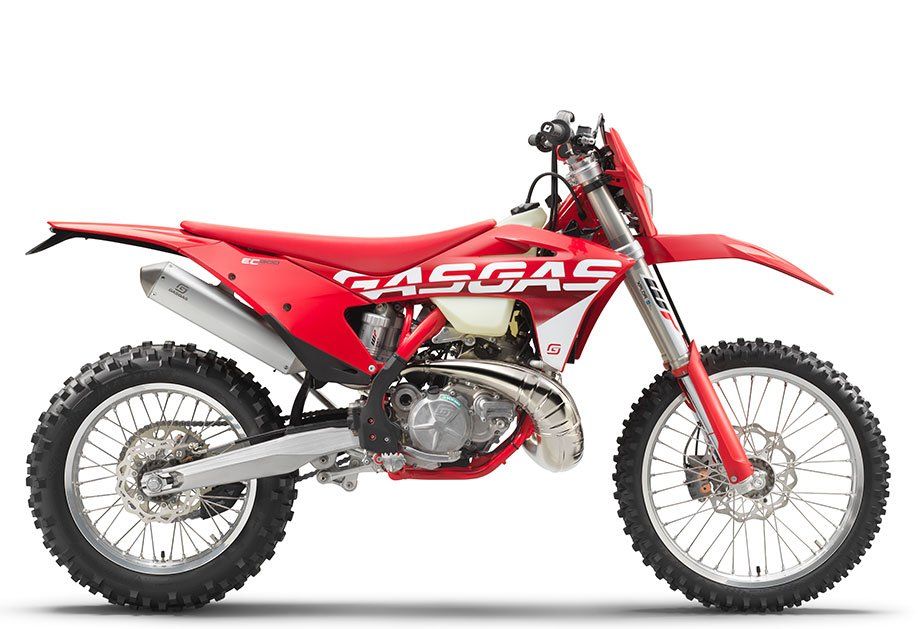

Gasgas

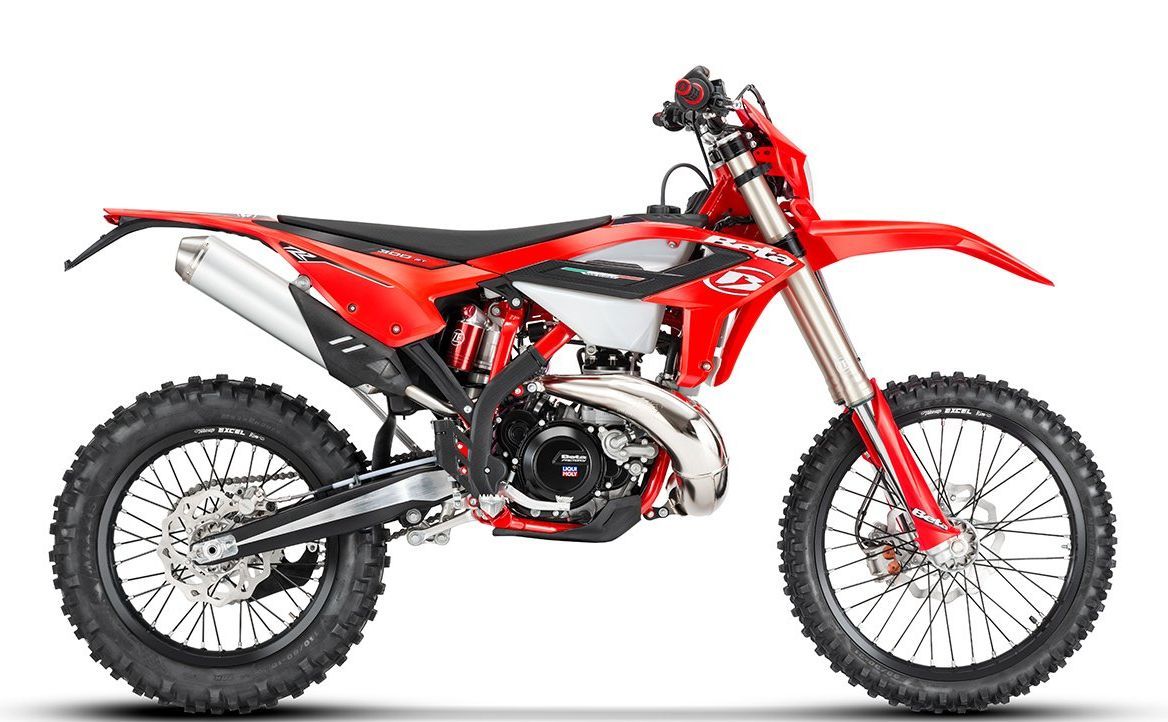

Beta

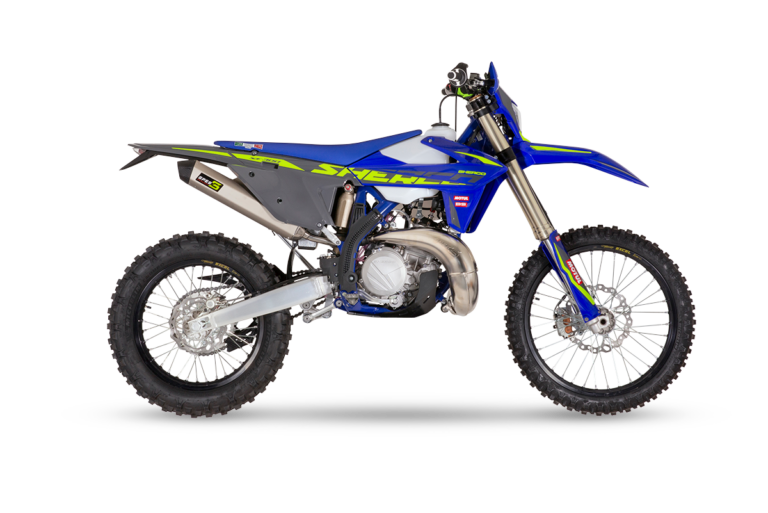

Sherco

developed with passion for hard enduro competition...

What's TACS-PRO RACING - Tire Air Control System...

The TACS-PRO RACING - Tire Air Control System is a protected Tire Air Control System especially designed for hard enduro to make it possible to climb the steepest hills with your dirt bike...it was developed by TACS RACING SYSTEMS.


Spending countless hours for tests on the bike in the forest the world first Tire Air Control System for hard enduro is the final result...

Your advantages...

  • air pressure adjustable while riding
  • more traction on loose and slippery uphills
  • more safety on loose and slippery downhills
  • less wasted driver energy
  • fewer crashs in tricky up-/downhill sections with reduced risk of bike damages
  • more speed and safety in fast sections with drastically reduced puncture risk
  • puncture compensation (limited)
  • pressure rise compensation (automatic pressure regulation of temperature related pressure rise)
  • extended tire lifetime
  • bike useable with standard rims (fast tire change)
  • less bearing wear due to double encapsulation


  • air pressure adjustable while riding
  • more traction on loose and slippery uphills
  • more safety on loose and slippery downhills
  • less wasted driver energy
  • fewer crashs in tricky up-/downhill sections with reduced risk of bike damages
  • more speed and safety in fast sections with drastically reduced puncture risk
  • puncture compensation (limited)
  • pressure rise compensation (automatic pressure regulation of temperature related pressure rise)
  • extended tire lifetime
  • bike useable with standard rims (fast tire change)
  • less bearing wear due to double encapsulation

How it works...

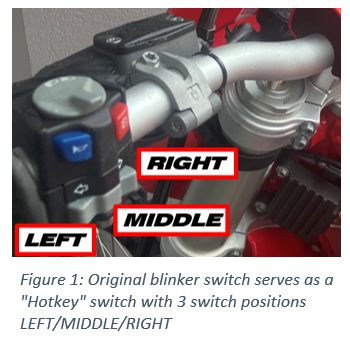

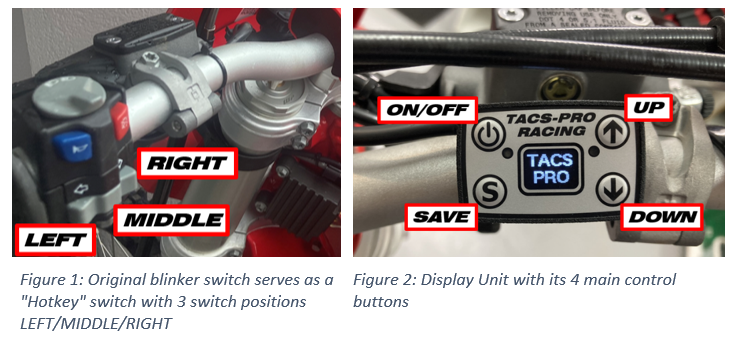

The TACS-PRO RACING - Tire Air Control System is controlled with the handlebar-mounted display unit and the original blinker switch which serves as a Hotkey-switch by using the 3 positions left, middle and right.

  • you can choose between the 2 pre-defined pressure targets LOW and HIGH
  • you can adjust the 2 pressure targets LOW and HIGH concerning your needs in a pressure range of 0 - 0,8 bar
  • if you want to adjust your tire pressure manually without changing your LOW and HIGH targets you can choose the middle position of your blinker switch and adjust the pressure manually by pressing the UP or DOWN button

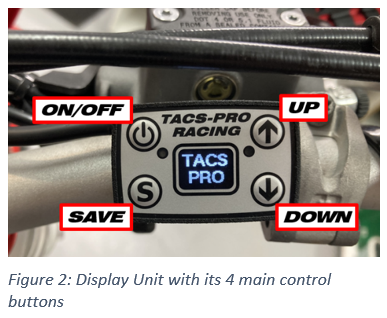

  • the Display/Control Unit gives you constant feedback with a digital screen and additionally 2 LEDs for the pressure status
  • LOW additional bike weight: only 660g
  • ULTRA LOW POWER CONSUMPTION: 12V, 1,5A (less than radiator cooling fan)
  • NO POWER CONSUMPTION when compressor is inactive


Note: we recommend a use with Tubliss for best results, but it is also possible to use with Lucioli and standard inner tube

What's included in the package...

You get everything you need for a self-installation in ONE PACKAGE to transform your bike directly...

The package includes the following parts:


  • handlebar-mounted TACS-PRO Display/Control Unit inlcuding a digital screen and additionally 2 LEDs for the pressure status for a constant optical rider feedback


  • Intelligent TACS-PRO Pressure Regulation Unit


  • double sealed airtight TACS-PRO wheel hub


  • Extra strong TACS-PRO Brake Anchor with integrated pressure air line in color Titanium-Brown

How to mount...

The Installation of the TACS-PRO RACING - Tire Air Control System is easy:


  • You get comprehensive assembly instructions included in our package
  • You get all parts needed for the installation of the system in one package
  • Installation takes around 2,5 h
  • Necessary general preparations:
  • removing seat bench and gas tank
  • removing left and right air filter box cover
  • removing rear wheel
  • dismounting brake caliper and brake anchor
  • removing right rear wheel bearing

What we recommend...

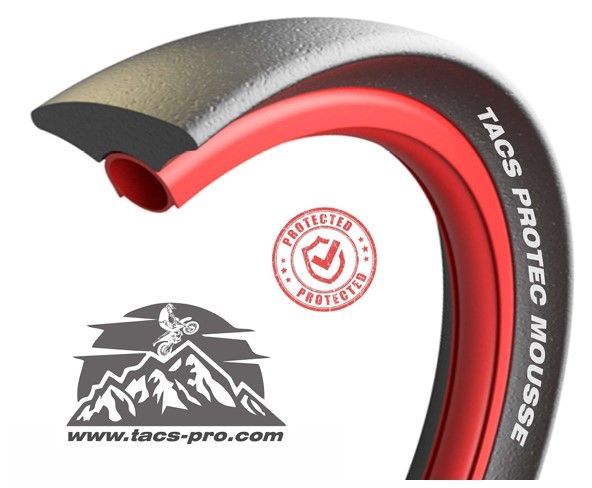

...combine your TACS-PRO RACING - Tire Air Control System with our TACS PROTEC Mousse!
